This is a manual for the replacement of the iPhone 6S Lightning connector flex cable, which aside from the Lightning connector secures the headphones jack, double microphone as well as contacts for connecting the Taptic Engine and voice speaker.

Replacement parts and accessories for iPhone 6S can be found on our e-shop. If you are interested in a service task for an iPhone 6S please visit one of our branches and we will arrange a same-day delivery.

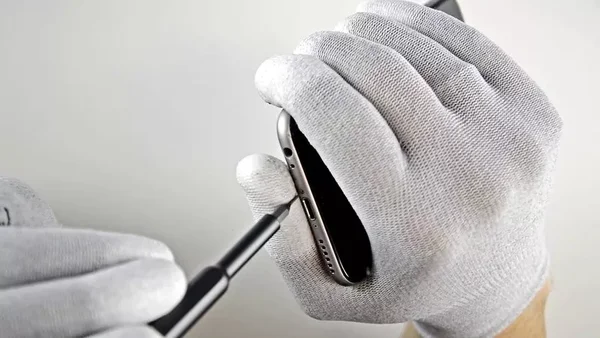

Step 1Removing Pentalobe screws

 Before disassembling your iPhone discharge the battery under 25%. A charged lithium-ion battery may easily catch fire and explode, if accidentally infringed.

  • turn off your iPhone
  • remove the two 3,4 mm P2 Pentalobe screws next to the Lightning connector


Step 2Opening the device

 IPhone 6S display is attached to to the device with a thin line of adhesive around edges. If you wish to secure it after the repair, you may purchase it as a replacement part and newly install. If you decide not to replace the adhesive, you should not spot any differences in the functioning of the device.

  • press down the suction cup in the bottom left corner of the display. Make sure that it did not cover the Home button

 Make sure that the suction cup is fully sucked to the scree and seals well.

  • pull the suction cup so that you slightly deviate the end of the front panel from the rare housing

 Give yourself enough time and use constant force.

 If the display holds firmly, heat it up slightly with a hairdryer, to soften the adhesive.

  • use a spudger to gently separate the back housing downwards from the LCD assembly, while you continue pulling the suction cup
  • use a plastic spudger to gently move in-between the edge of the LCD assembly and rare housing of the iPhone, while you continue gently pulling the suction cup upwards
  • once finished, remove the suction cup from the display

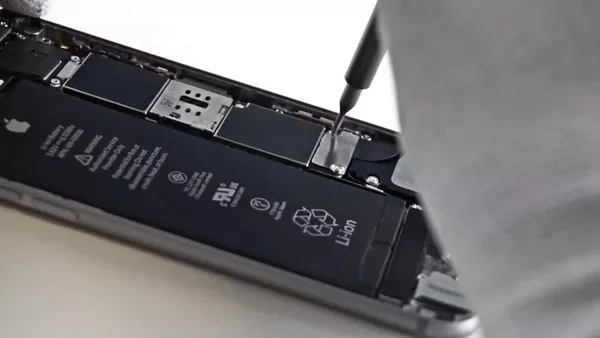

Step 3Removing the accumulator console screws

  • remove these screws from the ending of the battery connector
    • first 2,9 mm screw
    • second 2,2 mm screw

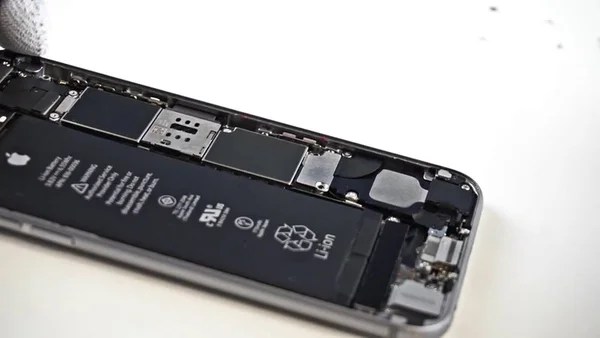

Step 4Disconnecting the metal battery connector holder

  • disconnect the battery holder from the iPhone

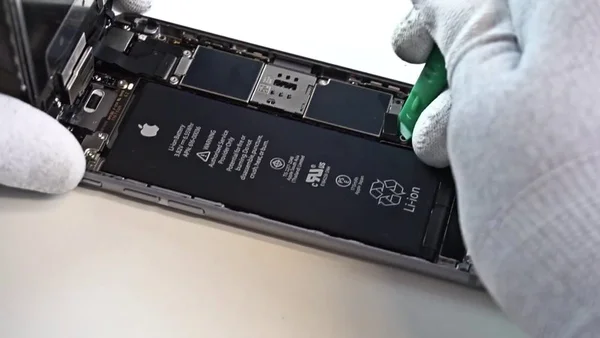

Step 5Disconnecting battery connector

  • use a plastic spudger to gently disconnect the battery connector from its socket on the motherboard

 Make sure, not to disconnect only the battery connector and ripping out the whole connector on the motherboard.

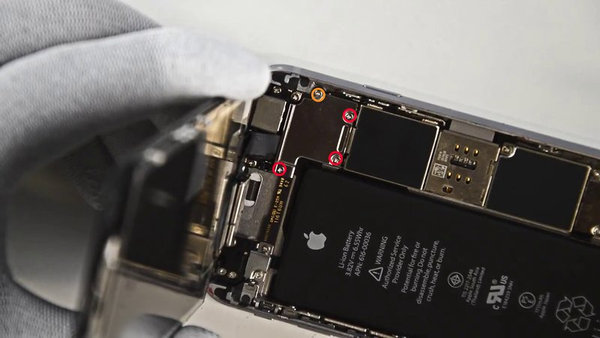

Step 6Removing front panel cable bracket from the LCD assembly.

  • Remove the following four screws, which secure the front panel cable bracket
    • Three 1,2mm screws
    • One 2,8 mm screws

 Keep track of the screws, as wrong placement during reassembling may cause permanent damage to the motherboard of your iPhone

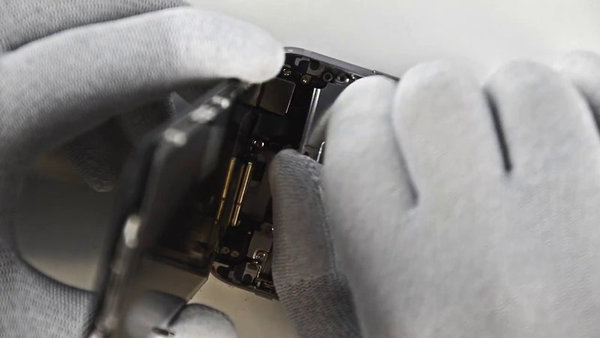

Step 7Removing the LCD assembly cable bracket

  • removing the front panel cable bracket from the motherboard

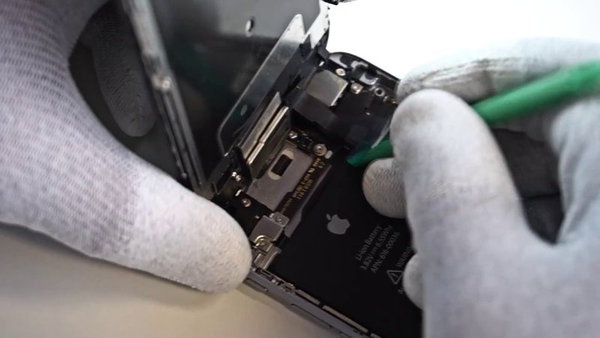

Step 8Disconnecting the front-facing camera connector

  • to disconnect the front-facing camera and sensor cable connector, use a spudger or fingernail

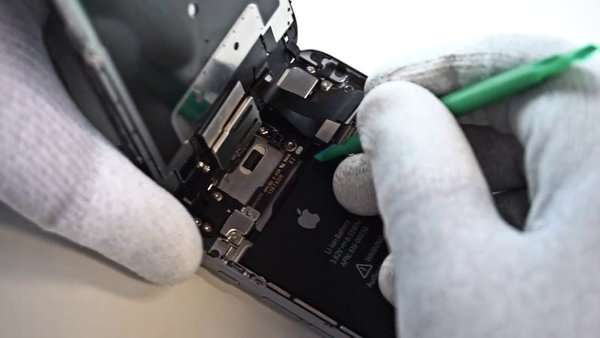

Step 9Disconnecting the touchscreen connector

  • use the flat end of a spudger to disconnect the touchscreen connector

 When re-connecting the touchscreen connector do not press down in the middle. Press one end of the connector and then the other. Pressing down in the middle may bend the component and cause damage to it.

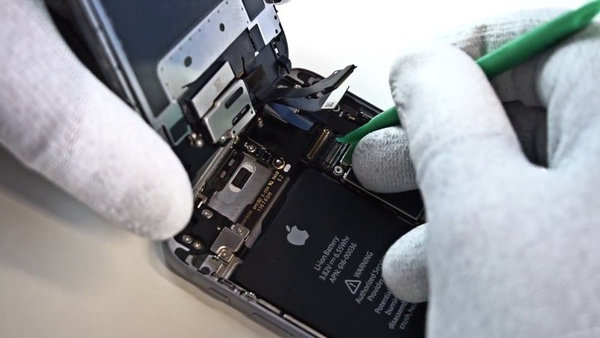

Step 10Disconnecting LCD cable

 Before disconnecting or re-connecting the cable, make sure that the battery is disconnected

  • to disconnect the LCD cable connector, use a spudger or a fingernail
  • the display data cable may pop out of the connector while you reassemble your phone
  • when turning your phone back on, this may cause white lines or a blank screen. If this happens, simply re-connect the cable
  • the best way to get your phone running, is disconnecting and re-connecting the battery connector

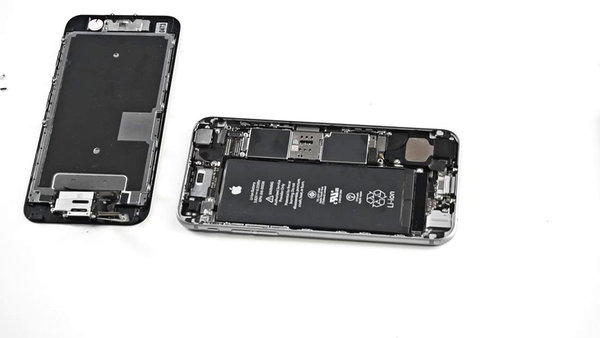

Step 11Separating the LCD assembly from the rare housing.

  • separate the LCD assembly from the rare housing

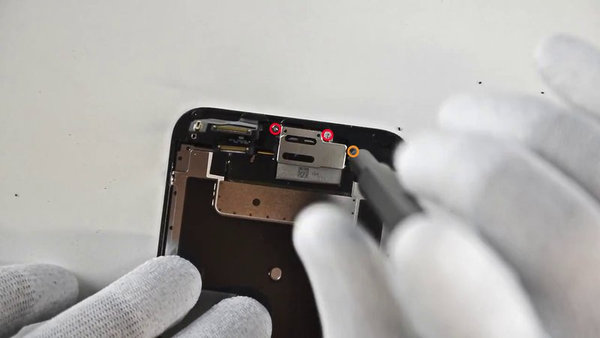

Step 12Disassembling earpiece speaker bracket

  • remove the three Philips screws from the earpiece speaker bracket
    • two 2,3 mm screws
    • one 1,3 mm screws
  • remove the earpiece speaker bracket

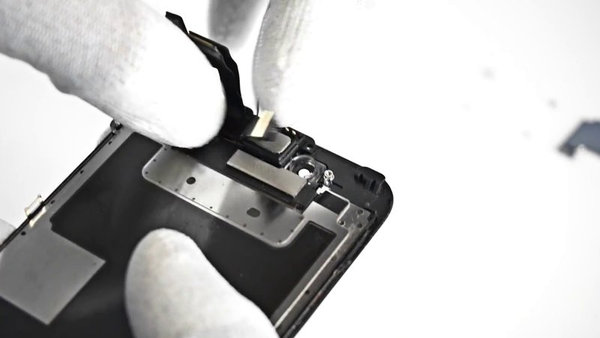

Step 13Lifting the front-facing camera

  • lift the front-facing camera from its place on the front panel by using the flat end of a spudger

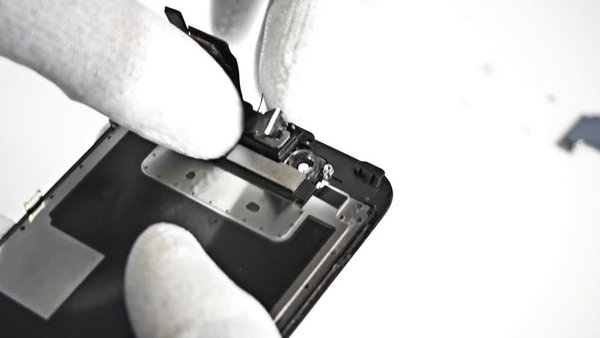

Step 14Disassembling the earpiece speaker

  • keep the front-facing camera on the side and remove the dysfunctional earpiece speaker from the phone.

 follow the steps in reversed order to install a new earpiece speaker
