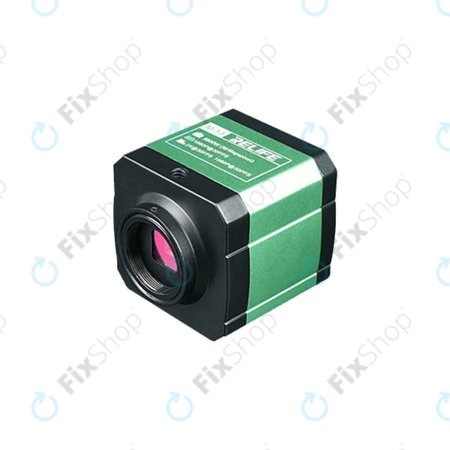

Relife M-13 3800W - Trinocular Microscope Camera 38MP, HDMI
Relife M-13 3800W - Trinocular Microscope Camera 38MP, HDMI
Relife M-13 3800W - Trinocular Microscope Camera 38MP, HDMI

Relife M-13 3800W - Trinocular Microscope Camera 38MP, HDMI

141.15 € with VAT
116.65 € without/VAT
For orders above 1,000 € you get FREE shipping

Relife M-13 3800W: 38MP trinocular microscope camera with HDMI & USB, 2K@30FPS & 1080P@60FPS, 1/2.33" Panasonic CMOS sensor, customizable crossline, remote control, and up to 64GB storage.

Match code

M-13

Artikel

1100294299

Add to wishlist

Relife M-13 3800W - Trinocular Microscope Camera 38MP, HDMI

The Relife M-13 3800W is a cutting-edge trinocular microscope camera that offers an impressive 38MP resolution with HDMI output. This high-definition camera is tailored for precision work in electronics repair, laboratory research, and industrial inspection. It provides exceptionally clear images for detailed analysis and documentation.

Features:

  • High-Resolution Sensor: Equipped with a 1/2.33 inch Panasonic 38 megapixel CMOS sensor.
  • Pixel Precision: Offers a pixel size of 1.335 X 1.335 um for capturing fine details.
  • Multiple Interfaces: Includes HDMI (Type A), USB (Type B), and TF Card slots for versatile connectivity.
  • Video Recording: Supports 2K@30FPS and 1080P@60FPS video record resolution.
  • HDMI Output: Provides a 1920*1080 60 FPS HDMI resolution, with the capability to output via USB simultaneously.
  • Adjustable Crossline: Features support for 8 lines, with customizable color, width, and position.
  • Remote Control: Allows for convenient remote control operation, enhancing user experience.

Technical Parameters:

  • Sensor: 1/2.33 inch Panasonic 38 megapixel CMOS sensor.
  • Pixel Size: 1.335 X 1.335 um.
  • Interface: HDMI (Type A), USB (Type B), TF Card.
  • Video Record Resolution: 2K@30FPS, 1080P@60FPS.
  • HDMI Resolution: 1920*1080 60 FPS, can output with USB at the same time.
  • HDMI Scale: Supports 4:3, 16:9, 16:10 screen.
  • USB Output: 19201080/30, 1280720/30, 640480/30, 320240/30 (MJPG).
  • Lens Interface: C/CS.
  • Exposure: Auto / Manual, AE value can be set.
  • Exposure Compensation: Supported.
  • White Balance: Auto / Manual / one-button white balance, RGB adjustable.
  • Storage: Up to 64GB.
  • Input Voltage: DC 5V-12V.
  • Crossline: Supports 8 lines, color & width & position customizable.
  • Centerline: Supported.
  • Language: English / Chinese.

Specification

  • Tool type
    Tools
  • Category
    Microscopes & Cams
  • Netto weight (kg)
    0.500
  • Ean
    2200000515421
