Refox FM40 - LCD Display Laminating Machine 3in1

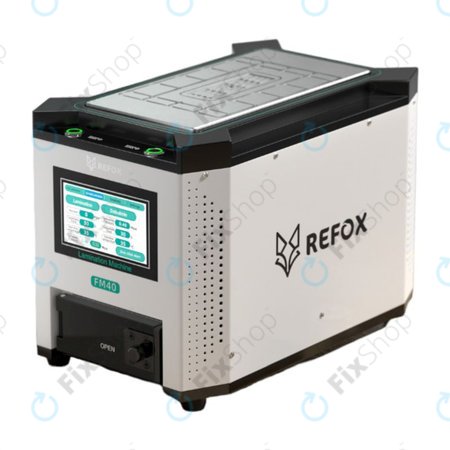

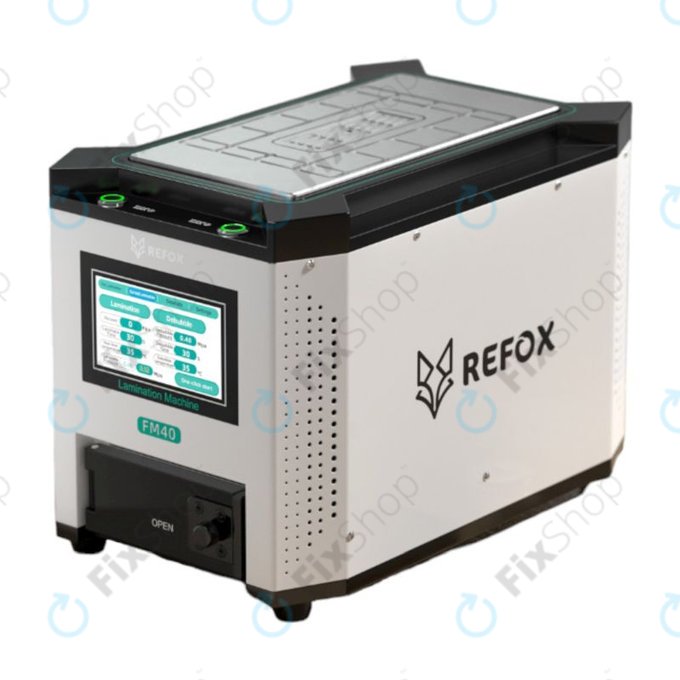

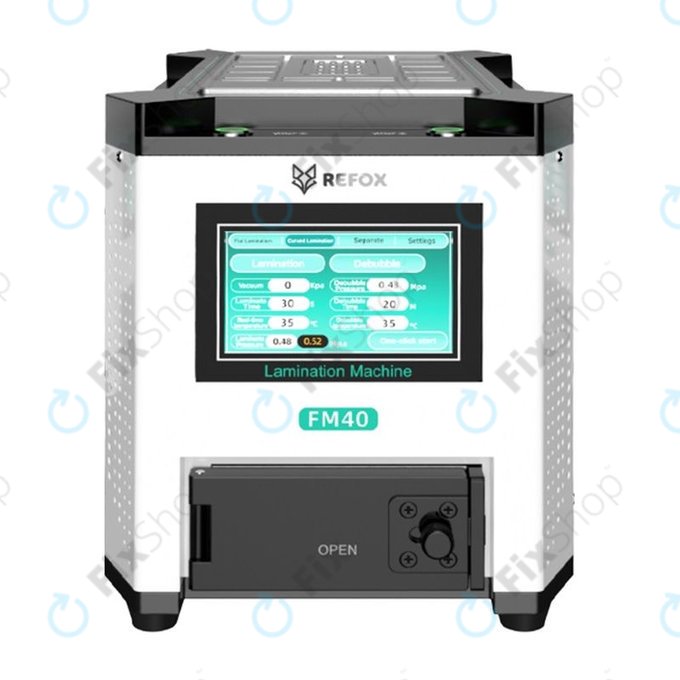

REFOX FM40 Laminating Machine is a versatile and powerful desktop device that combines functions of separation, lamination, and bubble removal. It is designed for separating screens of mobile phones/tablets, laminating front glass, bonding OCA adhesives, and removing bubbles. Its automatic vacuuming ensures precise lamination between LCD/OLED and front glass/touch panel/frame during the repair process, eliminating air bubbles and improving repair quality.

Main Features

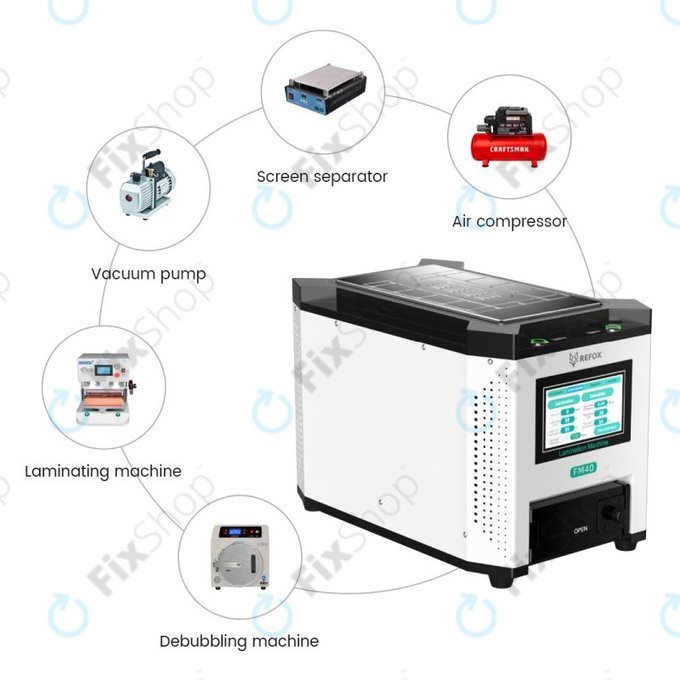

Integrated Design: Combines separation, lamination, and bubble removal into one desktop device without the need for additional external equipment, simplifying the screen repair process.

Automatic Vacuuming: Provides automatic vacuuming for precise lamination between LCD/OLED and front glass/touch panel/frame during the repair process, eliminating air bubbles and improving repair quality.

Wide Application: Suitable for various mobile phones, including phones with curved screens (lamination and bubble removal only), tablets (separation only), and wearable devices (lamination and bubble removal only), catering to a wide spectrum of repairs.

Enhanced Efficiency: The device is easy to operate, supporting separation for screens up to 12.9 inches and lamination with bubble removal for screens up to 7 inches, enhancing repair efficiency and reducing repair time.

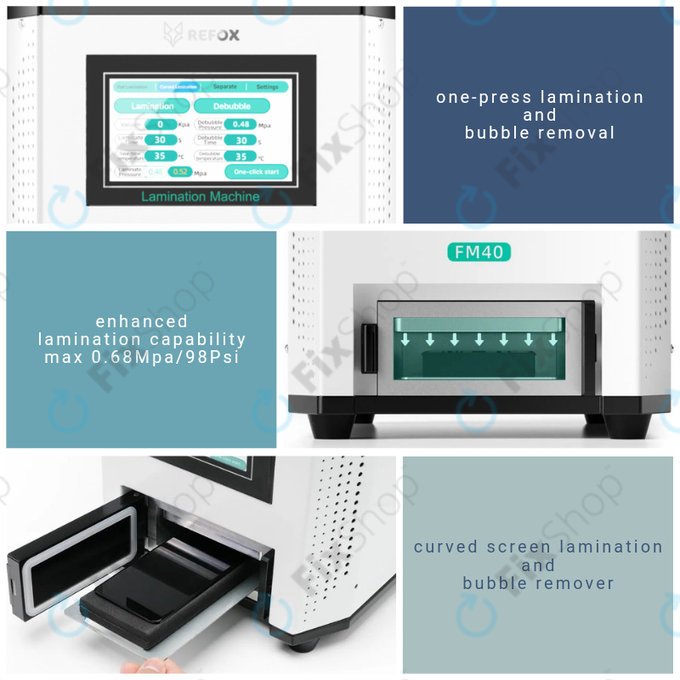

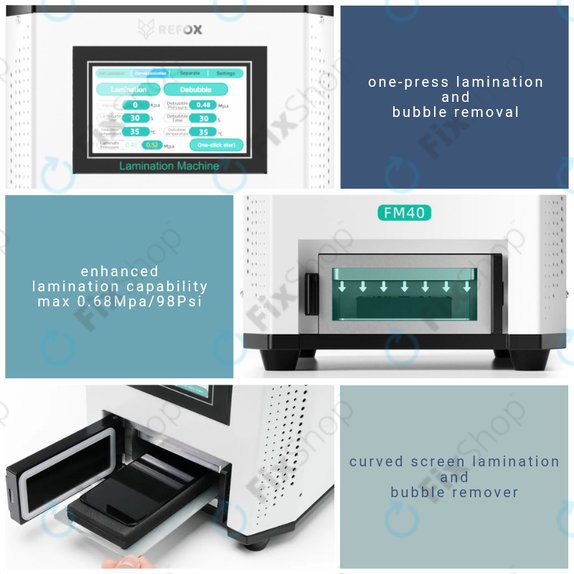

Upgraded Performance: Lamination and bubble removal capabilities have been improved, allowing for a maximum pressure of 0.68 Mpa/98 Psi due to the built-in air compressor.

Applications For FM40 Machine

• Replacement of Damaged Front Glass: Allows for the replacement of damaged front glass for phones/tablets/wearable devices.

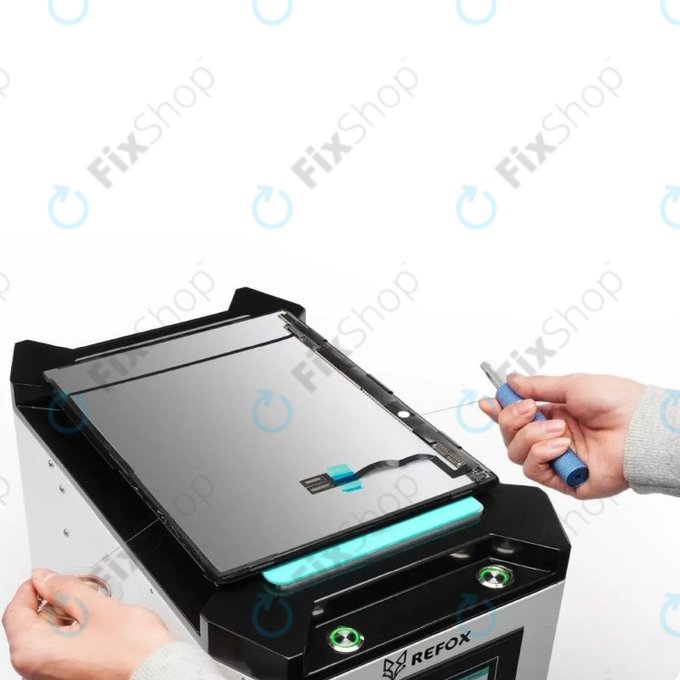

• Separation of Flat Screens: Supports separation of flat screens up to 12.9 inches, suitable for tablets.
• Lamination and Bubble Removal of Flat & Curved Screens: Enables lamination without any air bubbles for screens with flat and curved screens up to 7 inches.

Package Contents:

• Desktop Laminating Machine
• Silicone Pad for Mobile Phone Separation
• Silicone Pad for Separation and Flat Display
• Pad for Laminating Flat Display
• Curved Laminating Pad (Type Z)
• Curved Laminating Pad (Type K)
• Power Cable
• Tray

Specifications:

Power: 360W

Dimensions: 427x250x290mm

Weight: 23 Kg

Lamination and Bubble Removal Chamber Size: 190x110x40mm
