Infrared Thermal Imaging Camera for Motherboard Diagnostics WXY P30R Pro

Infrared Thermal Imaging Camera for Motherboard Diagnostics WXY P30R Pro

The WXY P30R Pro infrared thermal imaging camera is designed for electronics repair, motherboard diagnostics and troubleshooting of mobile devices, tablets, computers and other electronic components. It helps technicians quickly locate overheating areas, short circuits and faulty components during repair work.

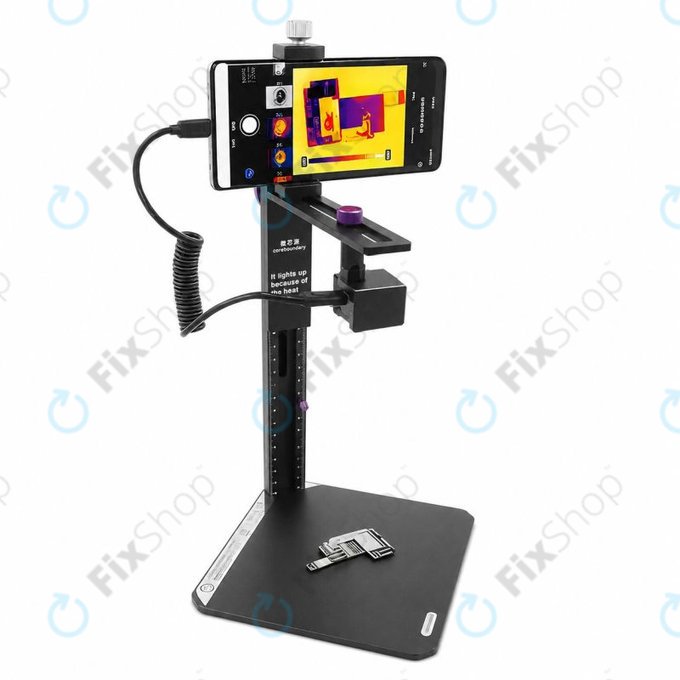

Thanks to real-time thermal imaging, the camera makes it easier to identify abnormal temperature changes on a motherboard or circuit board. This can reduce diagnostic time and support more accurate fault detection compared to visual inspection alone.

The infrared thermal camera for motherboard repair is suitable for professional service centers, repair technicians and advanced electronics diagnostics. It can be used when checking iPhone, Android and PC boards, power circuits, chips and other components where temperature differences can indicate a fault.

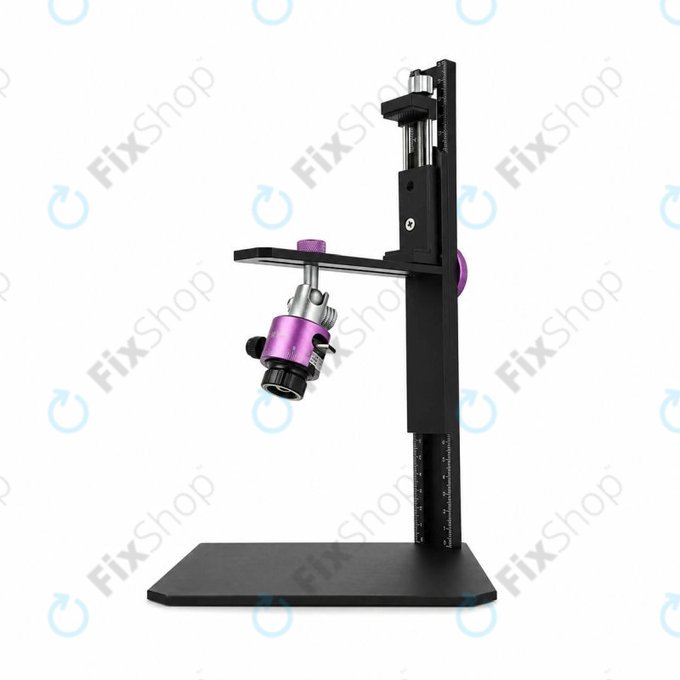

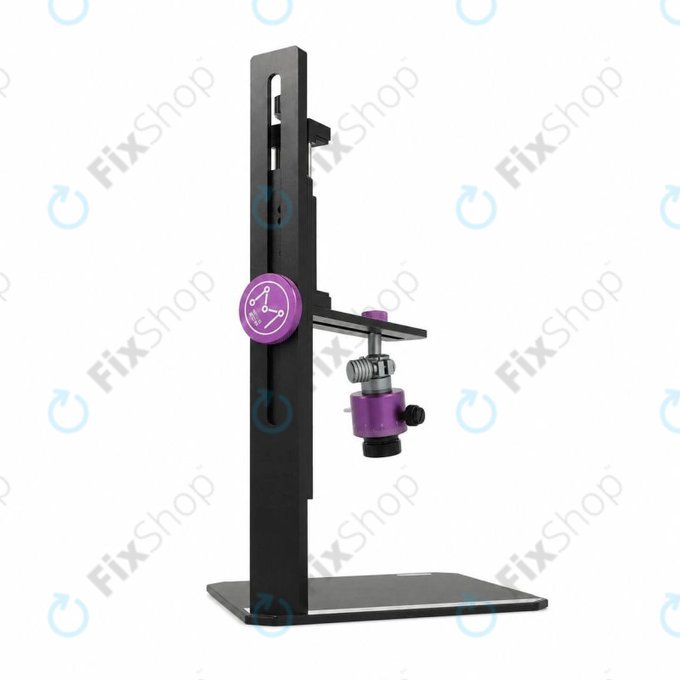

The adjustable stand helps keep the camera stable during inspection and allows comfortable positioning above the board. This makes the diagnostic process more controlled, especially when working with small components or repeated testing.

Key features

• Infrared thermal imaging camera for electronics repair
• Designed for motherboard diagnostics and fault detection
• Helps locate overheating components and short circuits
• Suitable for mobile phones, tablets, computers and circuit boards
• Real-time thermal imaging for faster troubleshooting
• Useful for checking chips, power circuits and faulty components
• Stable stand design for more precise inspection
• Professional tool for service centers and repair technicians

Technical specifications

• Brand: WXY
• Model: P30R Pro
• Product type: infrared thermal imaging camera
• Resolution: 256 × 192 pixels
• Temperature range: -20°C to 500°C

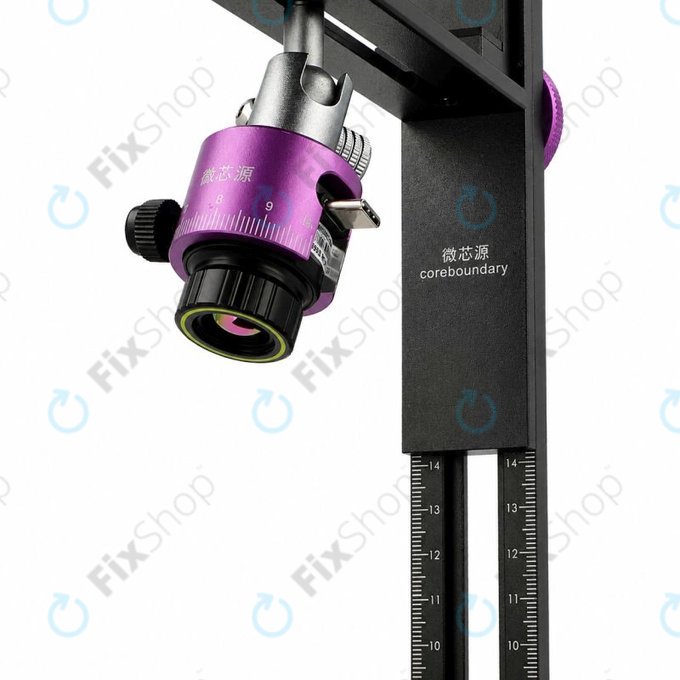

• Lens: 9.6 mm germanium lens
• Supported devices: iPhone, Android and PC
• Application: motherboard diagnostics, thermal inspection, short circuit detection and electronics repair

Application

Use the WXY P30R Pro thermal camera to inspect motherboards, circuit boards and electronic components during repair. The camera can help detect abnormal heat points, locate possible short circuits and support more accurate troubleshooting of damaged or faulty devices.

Package contents

• 1 × WXY P30R Pro infrared thermal imaging camera set

Note: For best results, follow the setup instructions provided by the manufacturer. A minimum working distance of approximately 10 cm is recommended when using the microscope/camera setup. Software or connection requirements may vary depending on the device or operating system used.
