Lincseek ShortCam II - Infrared Thermal Imaging Camera
Lincseek ShortCam II - Infrared Thermal Imaging Camera
Lincseek ShortCam II - Infrared Thermal Imaging Camera
Lincseek ShortCam II - Infrared Thermal Imaging Camera
Lincseek ShortCam II - Infrared Thermal Imaging Camera

Lincseek ShortCam II - Infrared Thermal Imaging Camera

574.73 € with VAT
474.98 € without/VAT
For orders above 1,000 € you get FREE shipping

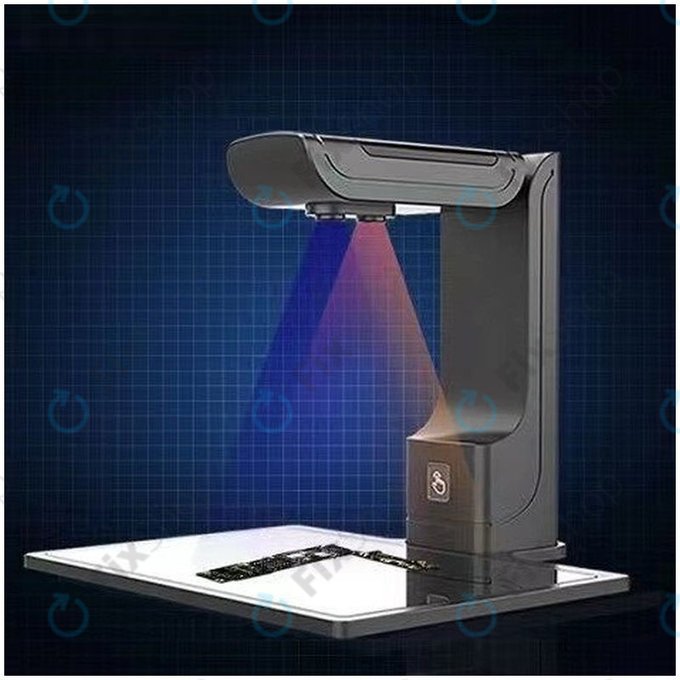

Lincseek ShortCam II is a folding infrared thermal imaging camera that can diagnose PCB faults such as short circuit and overheating. It has a high resolution of 256*192px and a temperature measurement range of -20℃~550℃.

Manufacturer
Lincseek

Match code

NAR-428

Artikel

1100226244

Add to wishlist

Lincseek ShortCam II

is a folding infrared thermal imaging camera that can be used for PCB diagnosis and repair. It can measure the temperature of the components on the motherboard and display them in high contrast colors. It can also locate the fault points precisely and quickly by tracking the high and low temperature areas. It has a type-c interface that can connect to a computer or a phone for easy operation and data storage.

Parameters:

  • Thermal imaging resolution: 256*192
  • Pixel size: 12um
  • Wavelength range: 8-14um
  • Field of view: 25°*18°
  • Visible light resolution: 2568H*1448V
  • Temperature measurement accuracy: ±5°C or ±5% (take the maximum value)
  • Temperature measurement range: -20℃~550℃
  • Output voltage/power consumption: 5VDC/2.5W

Specification

  • Tool type
    Tools
  • Category
    Microscopes & Cams
  • Netto weight (kg)
    0.000
  • Ean
    2200000427151
