Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI
Microscope FX179 - 38MP Camera, HDMI

Microscope FX179 - 38MP Camera, HDMI

564.65 € with VAT
466.65 € without/VAT
For orders above 1,000 € you get FREE shipping

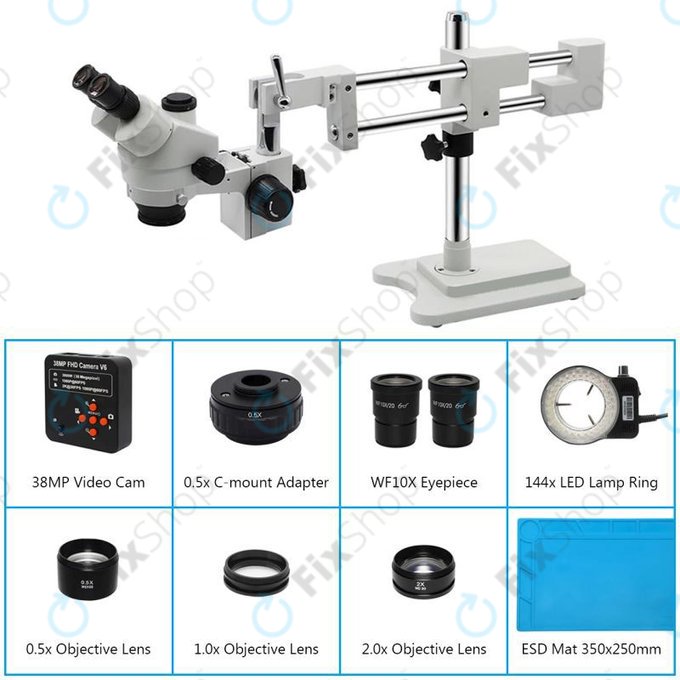

Microscope/camera FX179 designed for service work: PCB repair, soldering, cutting, etc. Package includes: stand, microscope/HDMI 38MP camera, 3x objective lens (0.5x, 1.0x, 2.0x), 144 round LED light, pad and protective UV glass.

Manufacturer
FX

Match code

NAR-MSC-003

Artikel

1100215296

Add to wishlist

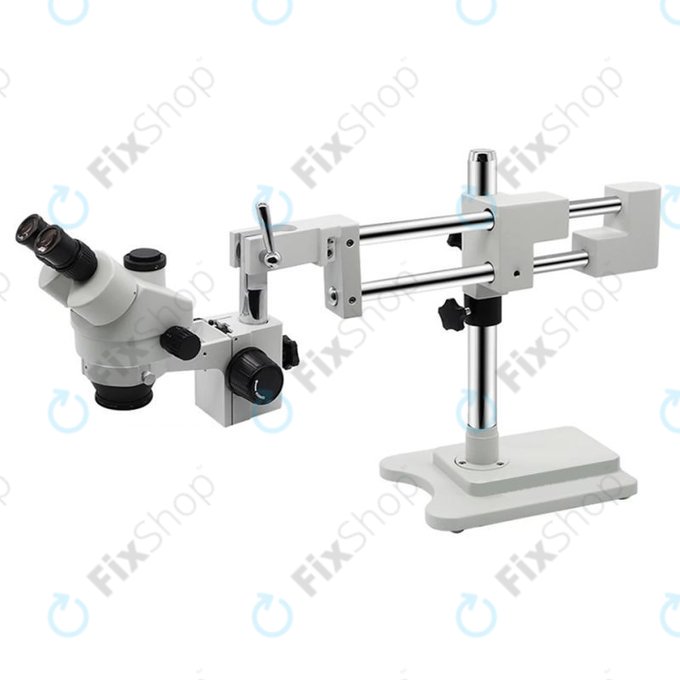

Microscope FX179 camera 38MP, HDMI

  • Professional zoom stereo microscope is a great tool for PCB observation of mobile phones, electric soldering, carving, etc.
  • in the set you will find: 144 round LED light, protective glass (UV glass), 38MP HDMI camera, 0.5x / 1.0x / 2.0x lens

Features:

  • 3.5X-90X Extremely high zoom magnification
  • Trinocular design for high quality photos, USB PC and CCD Video Imaging
  • stereo sharp images in the SUPER field of view
  • Precise alignment for long-term, fatigue-free tracking
  • Crystal clear original images in true colors
  • 45 Tilted trinocular head with SUPER wide eyepieces with high points
  • 30 mm SUPER wide-angle eyepieces
  • Both eye tubes with adjustable diopter
  • Adjustable interpupillary distance
  • Complete optical glass elements
  • Precision cut glass lenses
  • 4 "(100 mm) long working distance

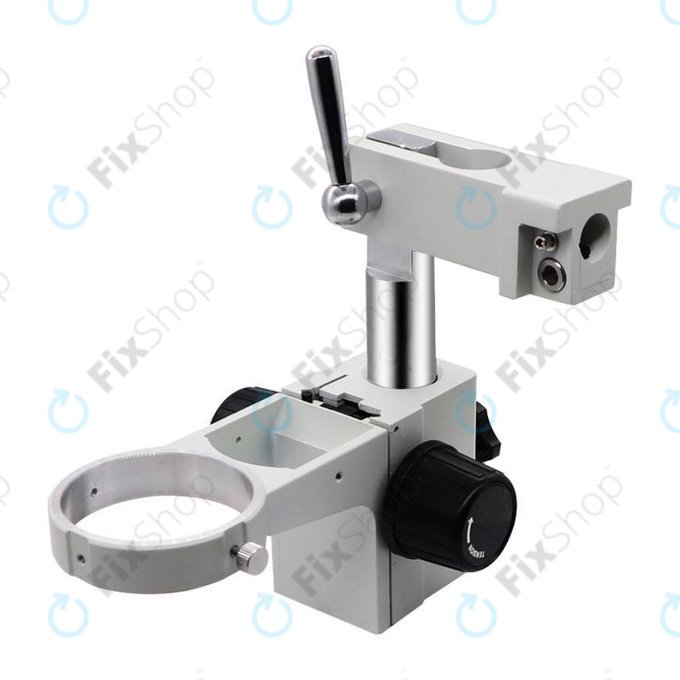

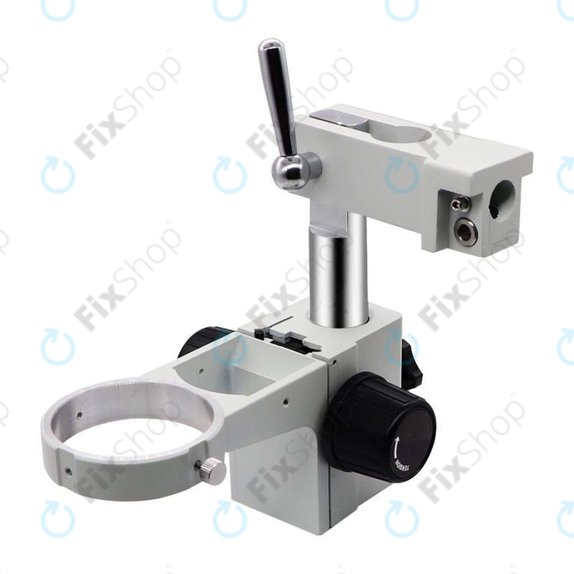

  • Versatile boom stand covering a large work surface
  • Two-arm design for 3-degree freedom
  • Able to position the microscope head in any direction
  • Durable stand made of cast steel with a stain-resistant enamel finish
  • Robust solid steel base
  • Auxiliary lens with a working distance of 165 mm and 30 mm

Technical specifications:

  • Head: 45 tilted 360 rotating trinocular head with simultaneous focusing
  • Eyepiece: 30 mm super wide-angle high-eyepoint WF10X / 20 mm
  • Target: 0.35-9.0X
  • Auxiliary lens (optional): SZM 0.5X & SZM 2.0X
  • Zoom range: 6.4: 1
  • Dioptric correction: 5dp
  • Interpupillary distance: 2-3 / 16 "- 2-15 / 16" (55-75 mm)
  • Field of view: 2-1 / 2 "(65 mm) in diameter
  • Working distance: 4 "(100 mm)

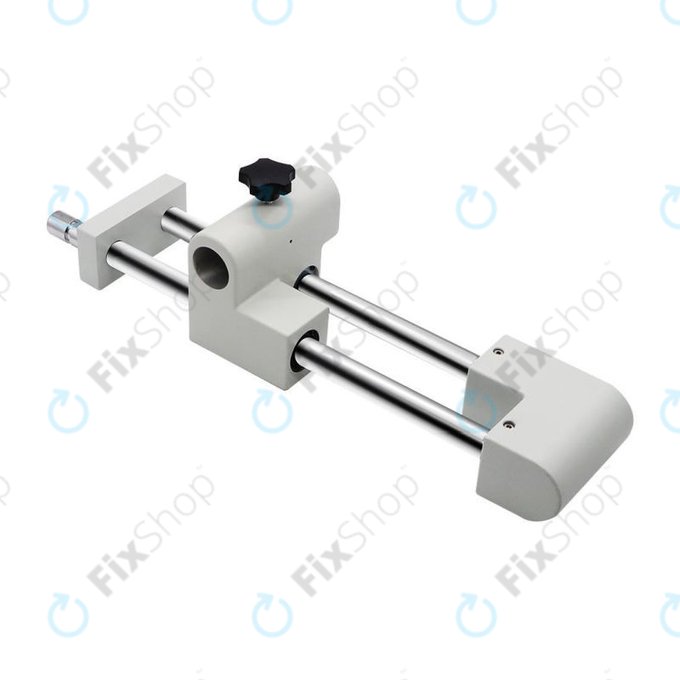

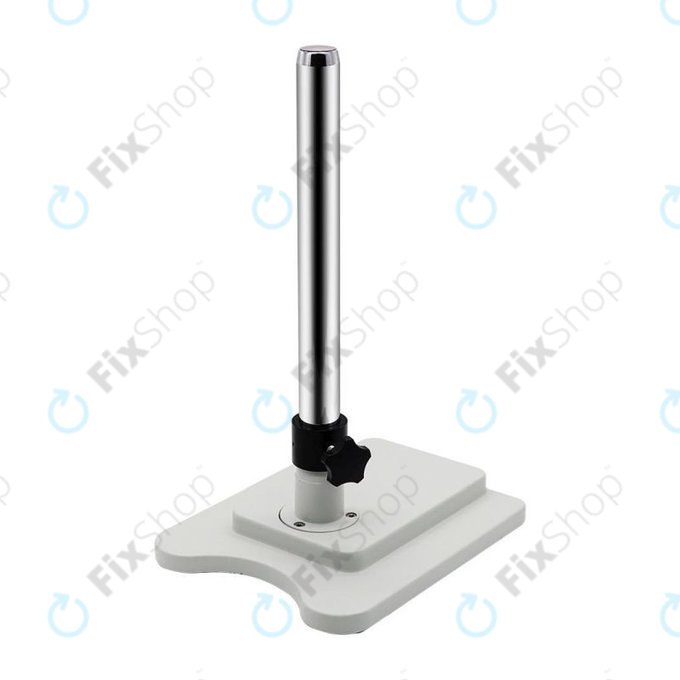

  • Boom stand: 20 "double arm (total length: 30"), 17 "high column, 10-1 / 4" x8-1 / 4 "x2-0" solid steel base

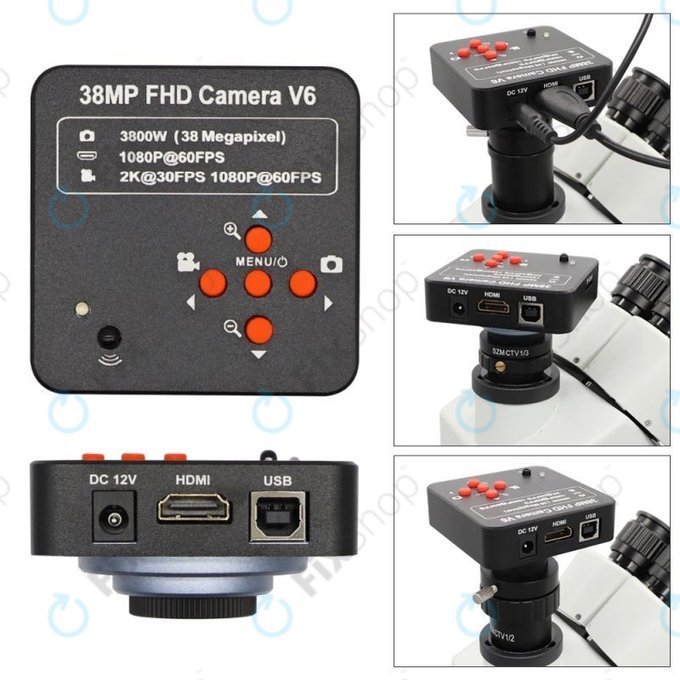

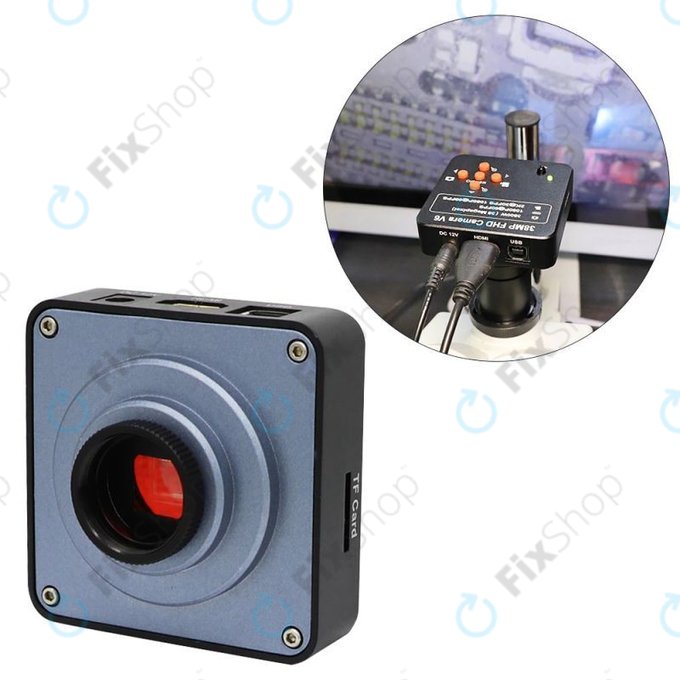

Camera specifications:

  • Model: Camera with two HDMI USB 2.0 outputs
  • Image format: jpg
  • Image resolution: 4320 * 3240 for TF card.
  • Video format: AVI
  • USB Video resolution: 1280 * 720 30 FPS
  • White balance: Auto
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: left / right, up / down
  • Freeze: Support
  • OSD: English
  • Line: different color, 4 horizontal lines, 4 vertical lines, any position

LED function:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused lighting without shadows
  • Brightness 0-100% Adjustable, high brightness
  • Variable intensity control
  • Power consumption: 100-240V, 50-60HZ
  • Suitable for lens diameter: 30-63m

Specification

  • Tool type
    Tools
  • Category
    Microscopes & Cams
  • Netto weight (kg)
    0.000
  • Ean
    2200000403865
