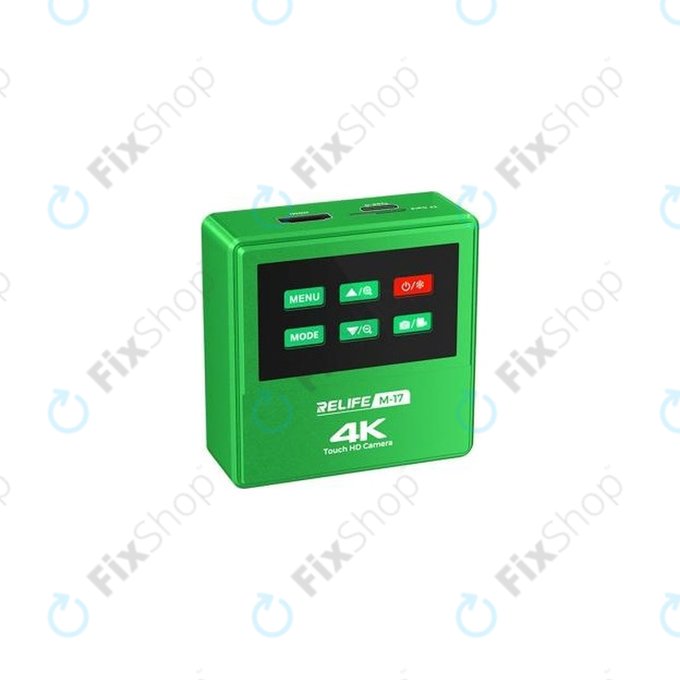

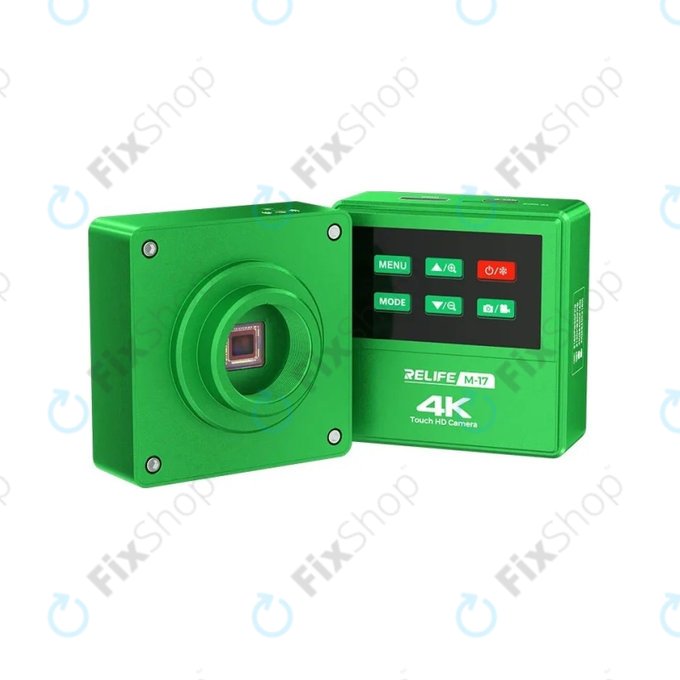

Relife M-17 - Touch Camera 4K for Trinocular Microscopes

Relife M-17 - Touch Camera 4K for Trinocular Microscopes

The Relife M-17 is an advanced touch camera designed for trinocular microscopes, offering 4K ultra-high-definition resolution. This camera is ideal for professionals in various fields such as electronics repair, medical research, and industrial inspection, providing crystal-clear imaging and easy touch control for an enhanced viewing experience.

Features:

• Touch Control Interface: Intuitive touch screen operation for quick and easy adjustments.
• 4K Ultra-High Resolution: Delivers stunningly clear images with a resolution of 3840*2160 at 30 frames per second.
• HDMI and Type-C Output: Offers versatile connectivity options for various display and recording needs.
• Advanced Sony Sensor: Equipped with a 1/2.8 Sony 8.29 million pixel CMOS sensor for superior image quality.
• Customizable Crosslines: Supports 16 straight/vertical lines with adjustable color, thickness, and position.
• Remote Control Operation: Enhances user convenience with the ability to make adjustments remotely.

Technical Parameters:

• Sensor: 1/2.8 Sony 8.29 million pixel CMOS sensor.
• Pixel Size: 1.45µm*1.45µm.
• HDMI Output: 1920*1080 at 60 frames.
• Type-C Output: 3840*2160 at 30 frames.
• Lens Mount: C/CS.
• Exposure: Automatic / Manual.
• Exposure Compensation: Supported.
• White Balance: Automatic/Manual, supports RGB adjustable.
• Storage: Maximum support 64GB.
• Input Voltage: DC 5V.
• Crossline: Supports 16 lines, color & width & position customizable.
• Center Line: Supported.
• Language: English/Simplified Chinese/Traditional Chinese.
