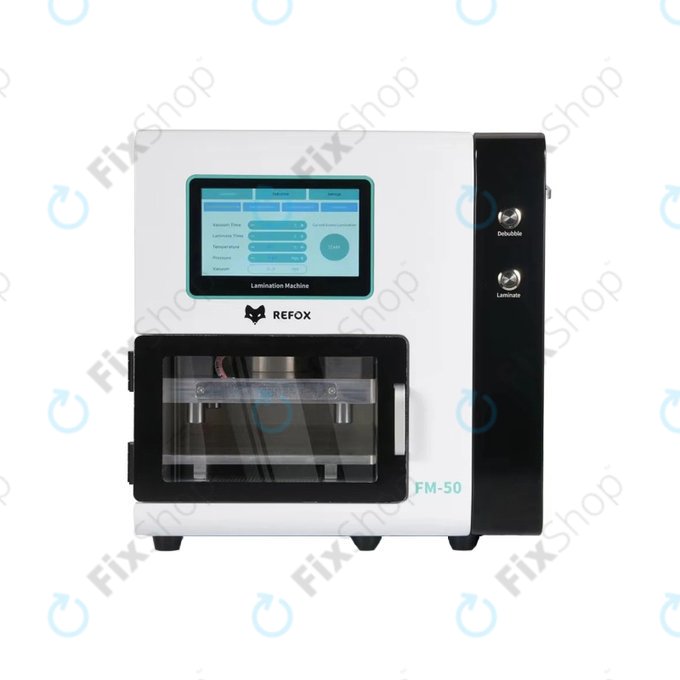

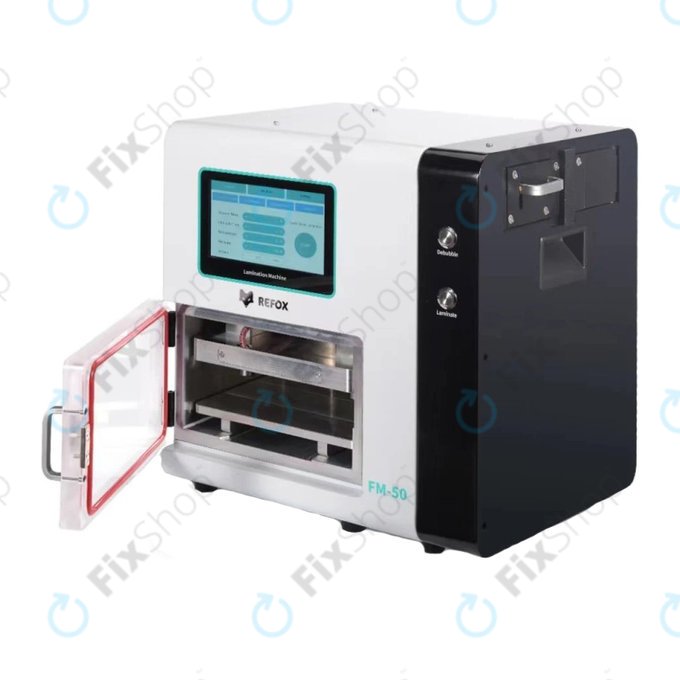

Refox FM-50 - LCD Display Laminating Machine 12.9"

Refox FM-50 - LCD Display Laminating Machine 12.9"

The Refox FM-50 is a fully CNC intelligent large-size laminating and debubbling machine designed for mobile device refurbishment. It combines precision, efficiency, and bubble-free results, making it an essential tool for repair technicians and refurbishment centers. Let’s delve into the details:

Overview:

• 5-in-1 Functionality: The FM-50 seamlessly integrates the following functions:
  • Lamination: Bonds new glass or digitizers to the LCD display.
  • Debubbling: Efficiently removes air bubbles trapped during lamination.
  • Screen Separation: Safely separates damaged screens during repair.
  • Curved Screen Refurbishing: Supports curved screens up to 12.9 inches.
  • Flat Screen Refurbishing: Suitable for flat screens and other electronic devices.
• High Precision and Efficiency: The FM-50 operates simultaneously and effectively, ensuring professional results without bubbles.

Features:

• Optimized Design:

  • Equipped with a 125mm large cylinder, the FM-50 ensures even lamination without air bubbles.
  • Smart Operation: Pressure-relating features integrated into one system.

• Wide Applications:

  • Ideal for mobile repair stores and refurbishment factories.
  • Suitable for:
    • Curved Screen Refurbishing
    • Flat Screen Refurbishing
    • Tablet Screen Refurbishing (Maximum screen size up to 12.9 inches)

Technical Parameters:

• Voltage: 220V
• Power: 600W
• Laminating Bin Size: 228 mm x 310 mm
• Product Size: 380 mm x 385 mm x 400 mm
• Net Weight: 48 kg
• Gross Weight: 55 kg

Do you have any additional questions? Please contact us via chat.
