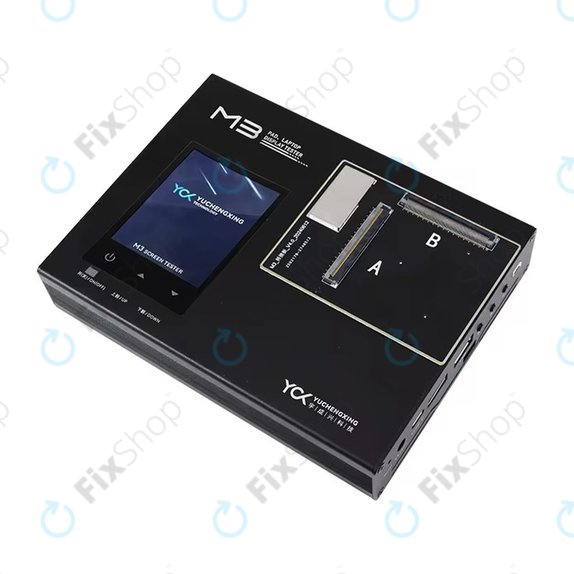

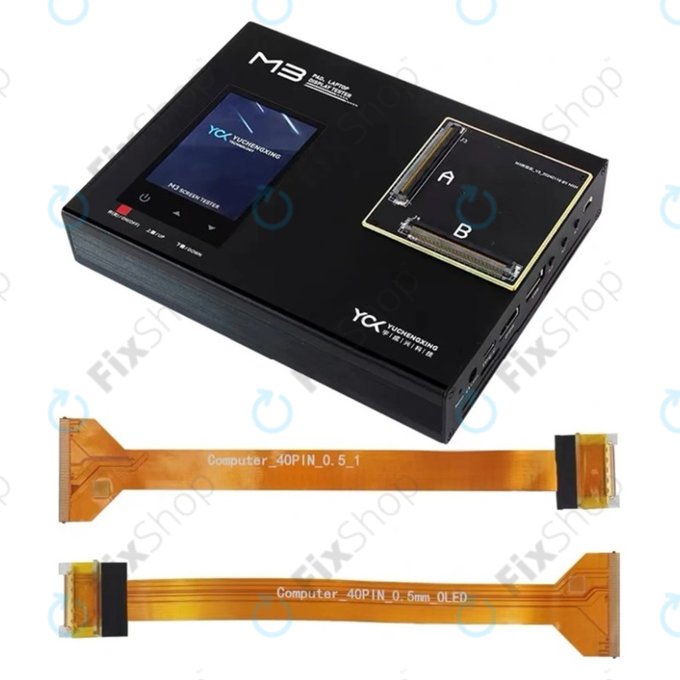

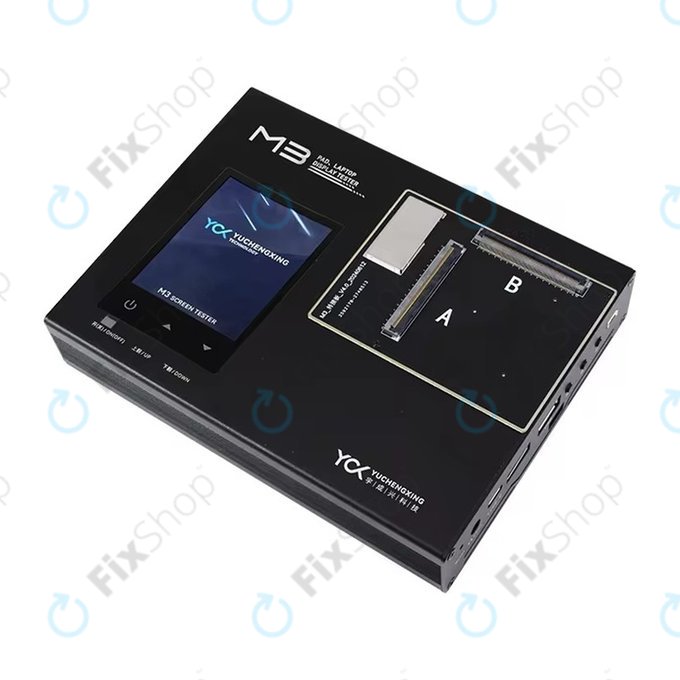

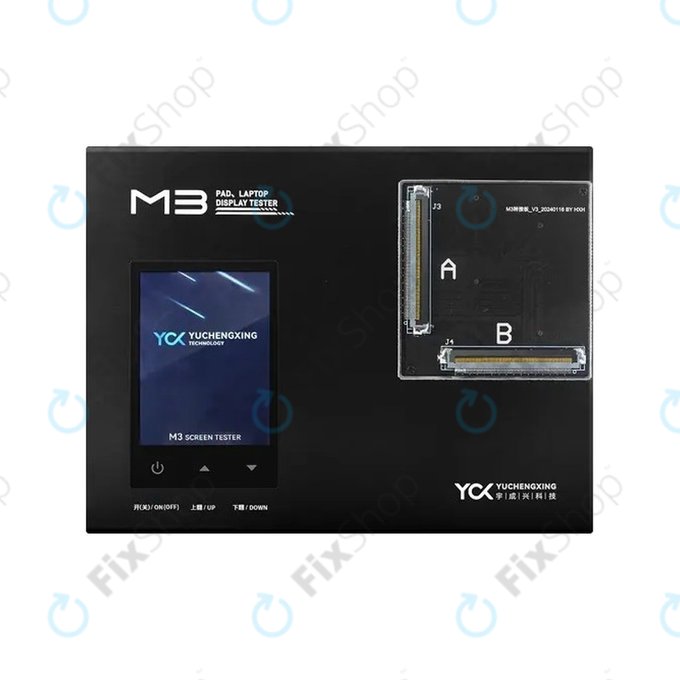

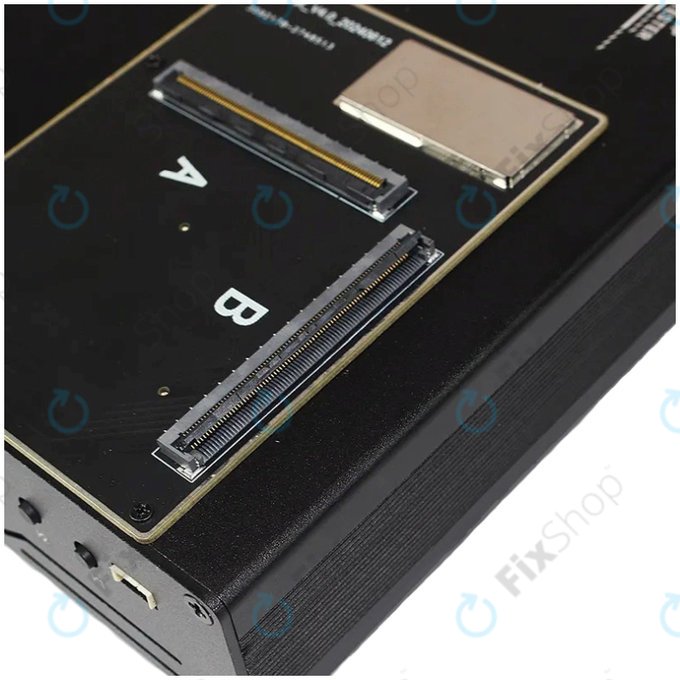

YCX M3 - LCD Display + Touch Screen Tester

YCX M3 Tablet / Laptop Screen Tester Supports Multiple Interfaces

Screen Tester Functions:

• Supports screen testing.
• Supports picture playback.
• Supports video playback (up to 8K resolution).

Screen Tester Features:

• Compatible with eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, and IIC ports.
• Suitable for testing screens on iPads, tablets, laptops, and smartphones.
• Equipped with a 32GB eMMC 5.1 storage chip.
• Input voltage: 12V / 3A.

Product Advantages:

1. eDP

   • Supports 8.1G 8K/30Hz, dual ports 4K/60Hz, and single port 4K/120Hz.
   • Number of interfaces: 2*4 lanes.
   • Supports DP1.4a eDP single channel bandwidth of 8.1Gbps (MAX).
   • Supports eDP1/2/4/8 lanes and multi-screen display.
   • Supports 6/8/10 bits.
   • Resolution support: 3840x2160 @ 120Hz (4 lanes) and 7680x4320 @ 30Hz (4 lanes).

2. MIPI

   • Supports dual MIPI C/D PHY, DSC, and dual screen displays.
   • Compatible with 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interfaces.
   • Handles 8 data lanes with a maximum data rate of 4.5Gbps per lane for DPHY.
   • Supports 6 data trios with a maximum data rate of 2.0Gsps per trio for CPHY.
   • Allows for maximum resolution of 4K @ 60Hz.
   • Supports dual MIPI display configurations: left and right screen modes.
   • Compatible with RGB formats up to 10-bit.
   • Supports compression modes with DSC 1.1/1.2a.

3. SPI/IIC

   • SPI >10MHz, IIC.

4. HDMI

   • Supports HDMI 2.1 interface.
   • Allows x1, x2, and x4 configurations per HDMI interface.
   • Handles all HDMI data rates: 3, 6, 8, 10, and 12Gbps.
   • Supports resolutions up to 7680x4320 @ 60Hz for HDMI TX.
   • Compatible with RGB/YUV formats up to 10-bit for HDMI TX.
   • Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2, and 8/10-bit per component video formats.
