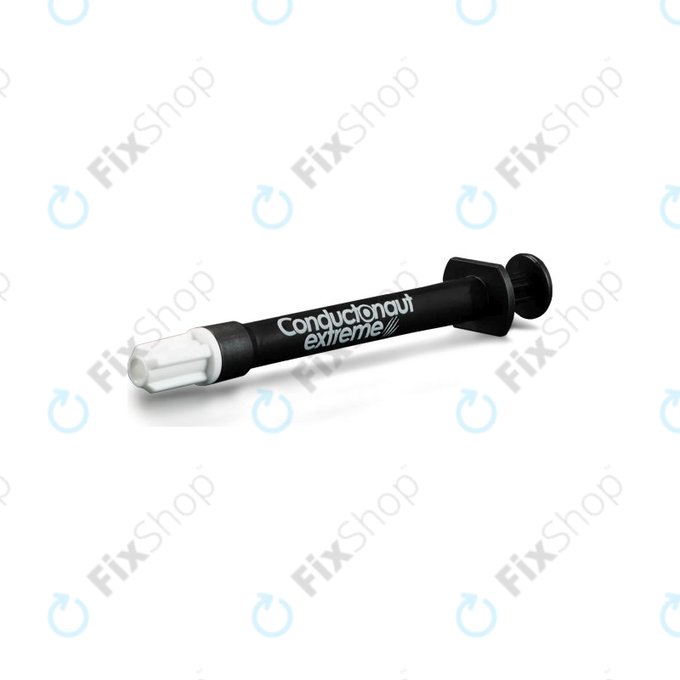

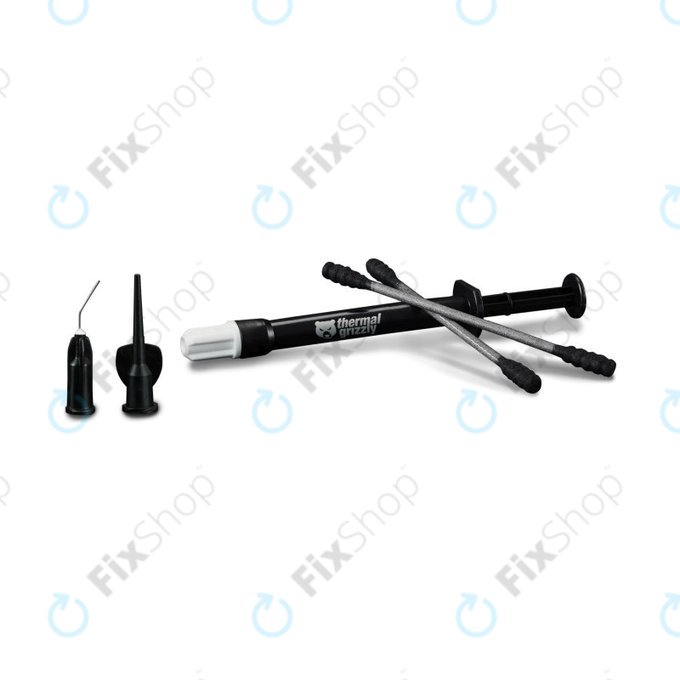

Liquid Metal 1g, Thermal Grizzly Conductonaut

Thermal Grizzly Conductonaut Liquid Metal

Liquid Metal 1g, Thermal Grizzly Conductonaut is a eutectic liquid-metal thermal interface based on metals including tin, gallium and indium. It is intended for experienced users who require maximum heat transfer in high-performance CPU, GPU or overclocking applications.

• Ultra-high thermal conductivity for high-efficiency cooling applications
• Designed for experienced users and performance-oriented systems
• Suitable for very thin interface layers between compatible surfaces
• Electrically conductive – accidental contact with electronic components can cause damage
• Must not be used with aluminium coolers
• Nickel-plated surfaces are recommended for the best long-term stability

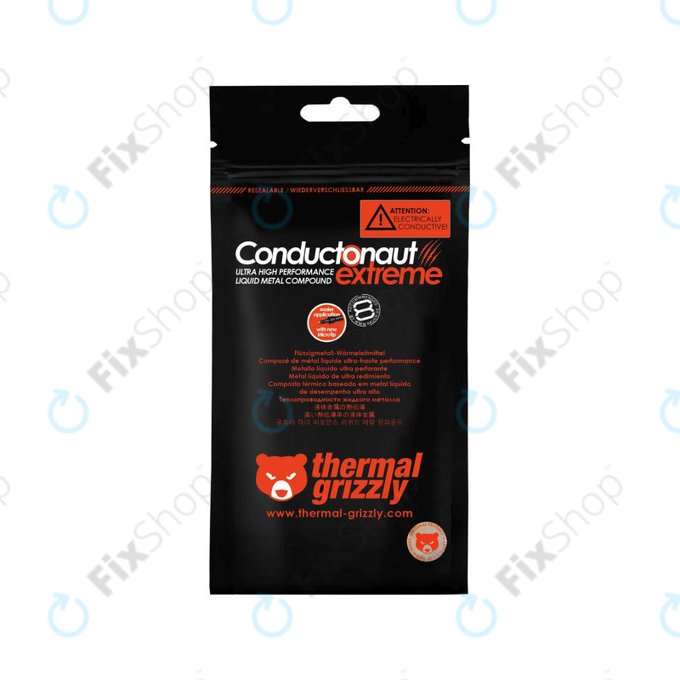

• Package: 1g

Liquid metal is not a general-purpose replacement for thermal paste. It is most appropriate when the user understands the electrical and material-compatibility risks and the cooling assembly is designed for this type of interface.

How to use:

1. Power off the device, remove the cooler and thoroughly clean both contact surfaces.
2. Confirm that the cooler contact surface is compatible and contains no aluminium in the contact area.
3. Protect the surrounding work area and make sure no liquid metal can reach SMD components, contacts or the PCB.

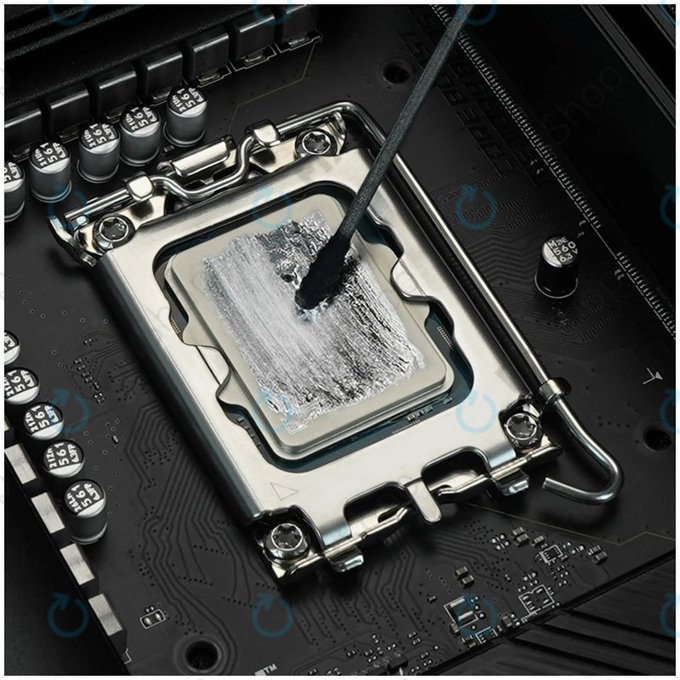

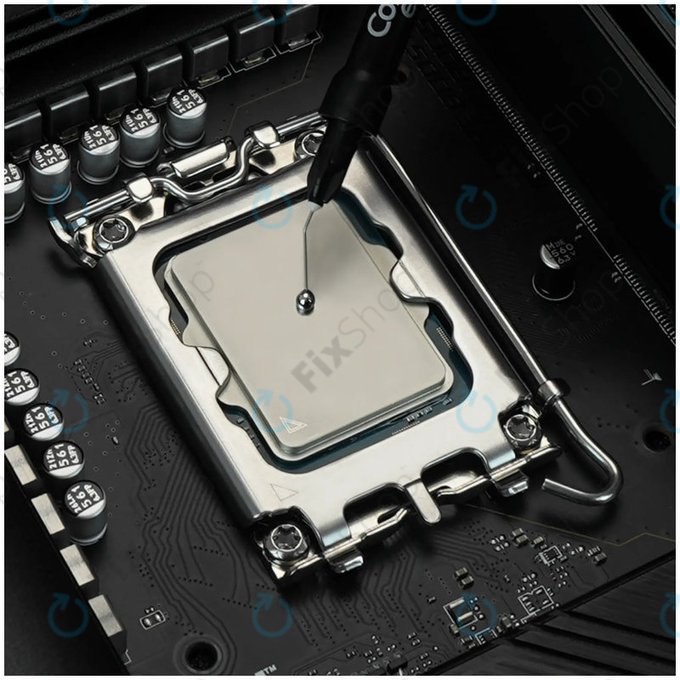

4. Apply only a very small amount and spread it into an extremely thin, continuous layer over the intended contact surface.
5. Reinstall the cooler carefully without allowing the liquid metal to escape from the contact area.

Important: This product is electrically conductive and requires precise application. Use only on compatible materials and follow the Thermal Grizzly application instructions.
