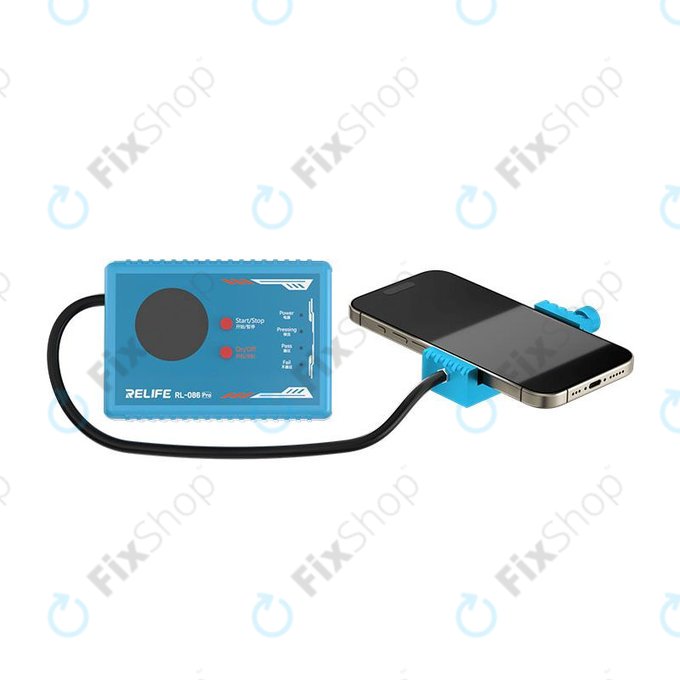

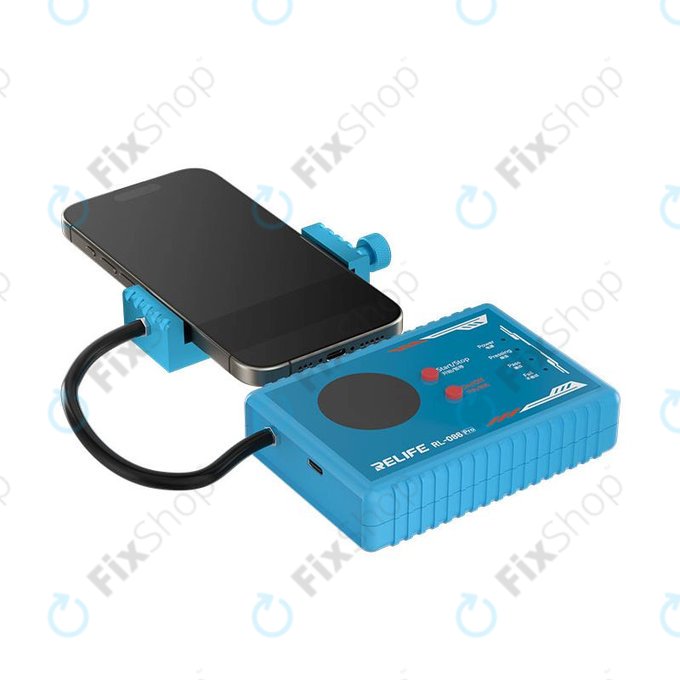

Intelligent Mobile Phone Air Tightness Detector RELIFE RL-086 Pro

RELIFE RL-086 Pro Intelligent Air Tightness Detector for Mobile Phones

The RELIFE RL-086 Pro air tightness detector is designed for mobile phone repair and sealing inspection after service work. It helps technicians check whether the phone body is properly sealed after display, back cover or housing replacement.

Using vacuum negative pressure testing, the device can detect air tightness without destructive testing or manual pressure detection. This makes the process more efficient, controlled and safer compared to traditional manual testing methods.

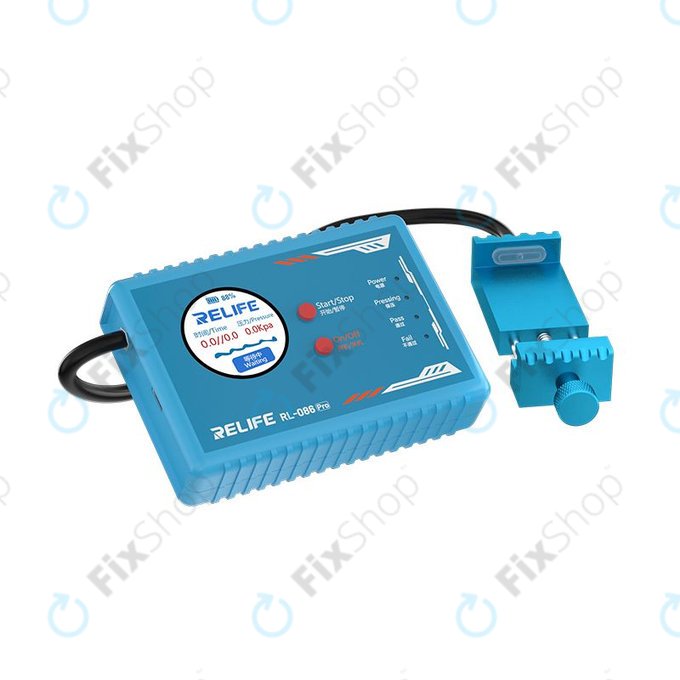

The intelligent air tightness detector features one-click automatic detection, allowing the test to start quickly without complex operation. It automatically monitors the working status, time and pressure, then displays the test result on the built-in color screen.

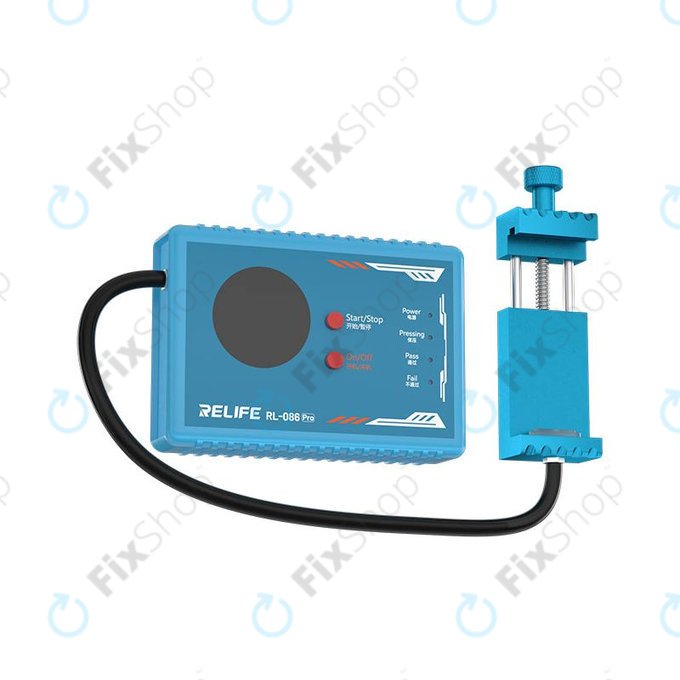

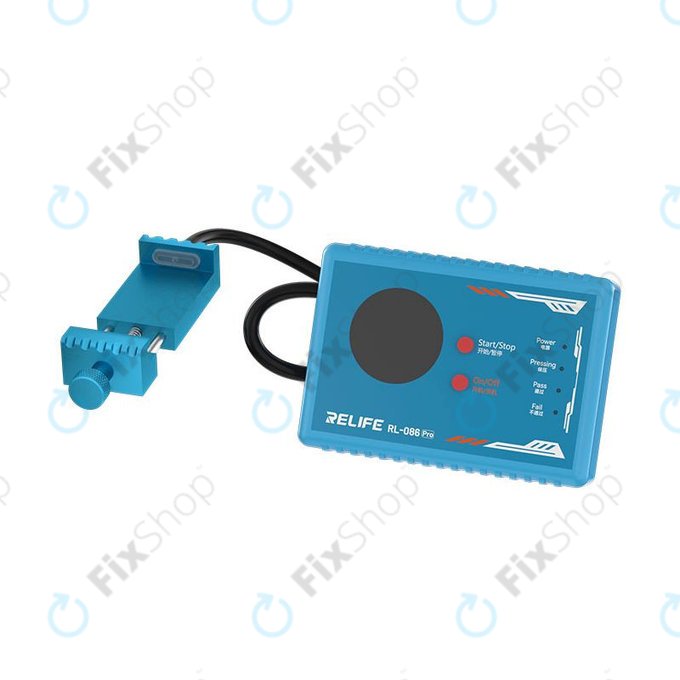

The adjustable clamping area supports different mobile phone sizes and helps align the test position more accurately. Its compact design, Type-C charging and built-in rechargeable lithium battery make it practical for everyday service use.

Key features

• Intelligent air tightness detector for mobile phone repair
• Designed to check sealing quality after phone repair
• Vacuum negative pressure testing for non-destructive inspection
• One-click automatic detection with clear test result display
• No manual pressure detection required
• Real-time display of time, pressure and working status
• Color screen with clear digital indicators
• Adjustable 55–95 mm clamping range for different phone sizes
• Built-in rechargeable lithium battery with Type-C charging
• Automatic shutdown after 5 minutes of standby

Technical specifications

• Brand: RELIFE
• Model: RL-086 Pro
• Product type: intelligent air tightness detector
• Test mode: negative pressure type
• Air pressure sensor range: -100 kPa to +100 kPa

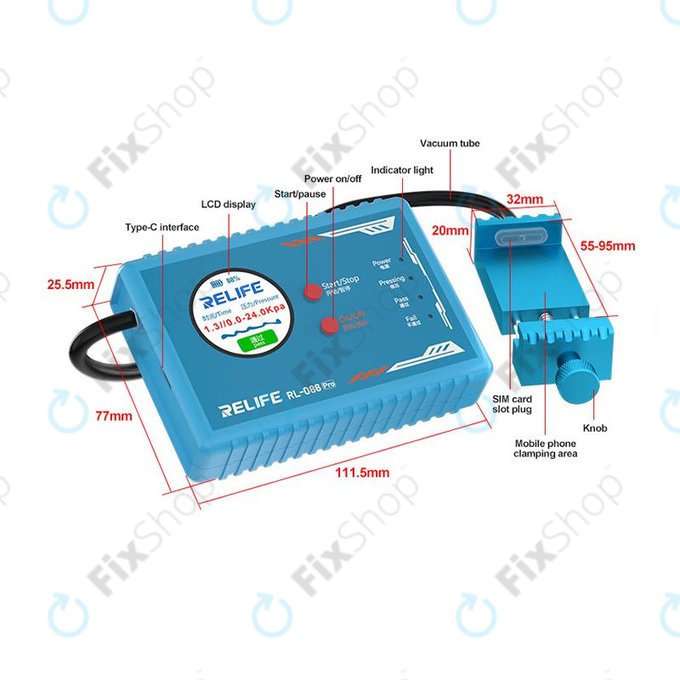

• Product size: approximately 111.5 × 77 × 25.5 mm
• Package size: approximately 178.5 × 118.5 × 43.5 mm
• Net weight: approximately 250 g
• Gross weight: approximately 368 g
• Power mode: Type-C / lithium battery
• Charging input: 5 V / 2 A max.
• Clamp range: approximately 55–95 mm

Application

Use the RELIFE RL-086 Pro mobile phone air tightness tester after repair to check whether the phone body, display area, back cover or sealing structure is properly fitted. It is suitable for service centers and repair technicians who need a fast and repeatable sealing test during mobile phone repair.

Package contents

• 1 × RELIFE RL-086 Pro intelligent air tightness detector

Note: This tool is used to test air tightness after repair. It does not guarantee waterproof performance by itself. Final sealing quality depends on the repair process, adhesive quality, phone condition and correct testing procedure.
