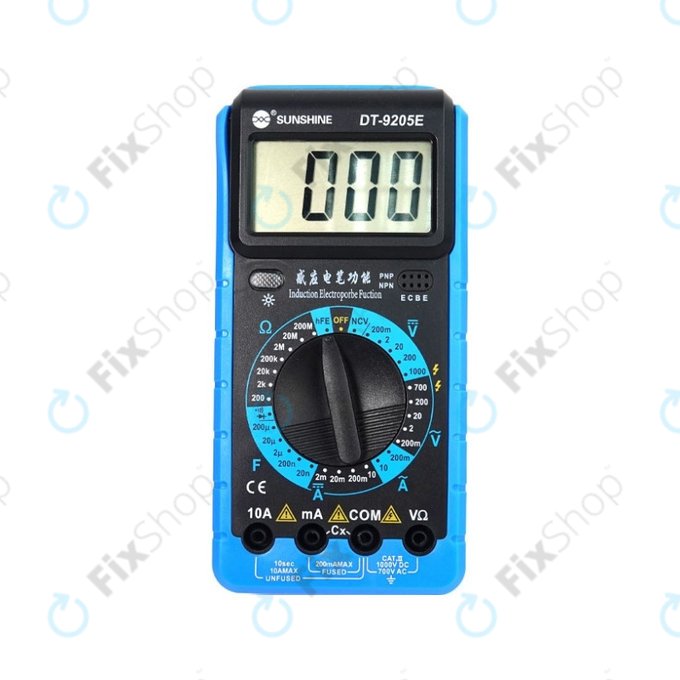

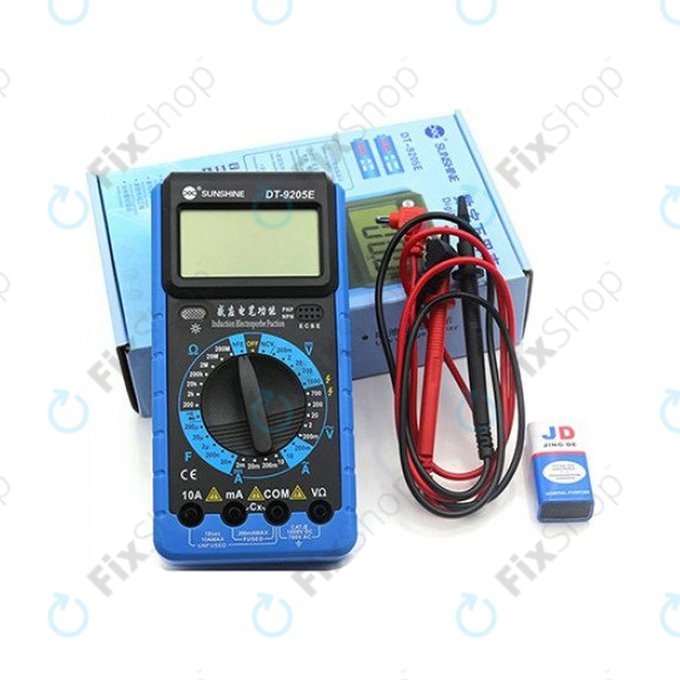

Sunshine DT-9205E - Digital Multimeter

Sunshine DT-9205E - Digital Multimeter

The Sunshine DT-9205E Digital Multimeter is a versatile and reliable tool designed for precision and ease of use. It is ideal for a wide range of applications, including engineering design, laboratory work, pilot production, factory affairs, field operations, and industrial maintenance. With its compact size and pocket-type battery power, this multimeter is not only easy to operate but also highly portable, making it perfect for professionals on the go.

Features

• CMOS Integrated Circuits: Utilizes advanced technology for accurate readings and stable performance.
• Large-screen LCD Display: Offers a clear and high-contrast view with a 70×40 mm screen, making it easy to read measurements.
• Automatic Shutdown: To conserve battery life, the multimeter automatically powers off after 25 minutes of inactivity.
• Optimized Design: Features a highly reliable range/function rotary switch structure to avoid misuse.
• Built-in Fuse: Provides overload protection to prevent damage from operational errors.

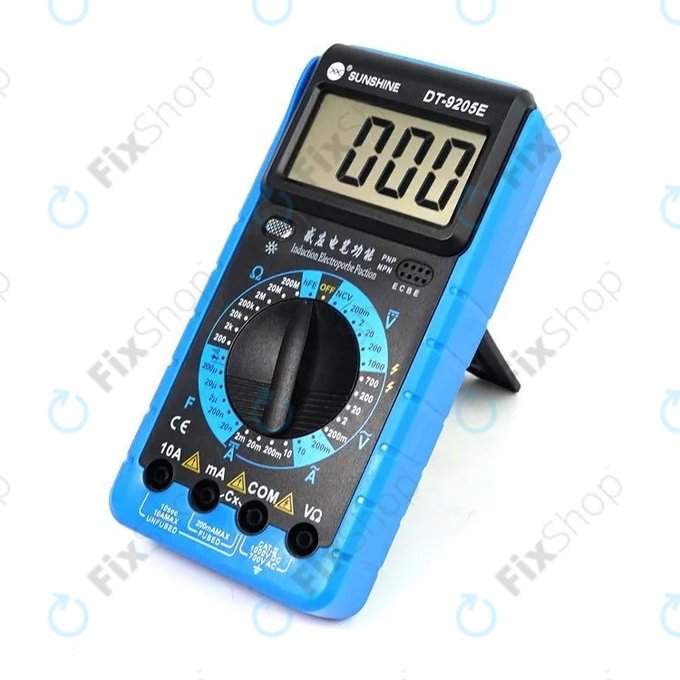

• Support Frame: Includes a body support frame for a 45° reading display, enhancing user comfort during measurements.
• NCV Measurement: Enables non-contact voltage measurement for added convenience and safety.

Technical Parameters

• Brand: Sunshine
• Model: DT-9205E
• DC Voltage Range: 200mV to 1000V ±(0.5%+1dgt)
• AC Voltage Range: 2V to 750V ±(0.8%+3dgt)
• DC Current Range: 2mA to 20A ±(0.5%+1dgt)
• AC Current Range: 20mA to 20A ±(1.0%+3dgt)
• Resistance Measurement: 200Ω to 200MΩ ±(0.8%+1dgt)
• Capacitance Measurement: 20nF to 200µF ±(4.0%+3dgt)
• Diode and Transistor Test: Included
• Temperature Test Range: -40°C to 1000°C
• Frequency Test Range: Up to 200KHz
• Continuity Buzzer: Yes
• Auto Power Off: Yes
• Power Supply: 9V Battery 6F22 (not included)
• Maximum Display: 1999
• Product Size: 190×90×30 mm
• Net Weight: 229g
