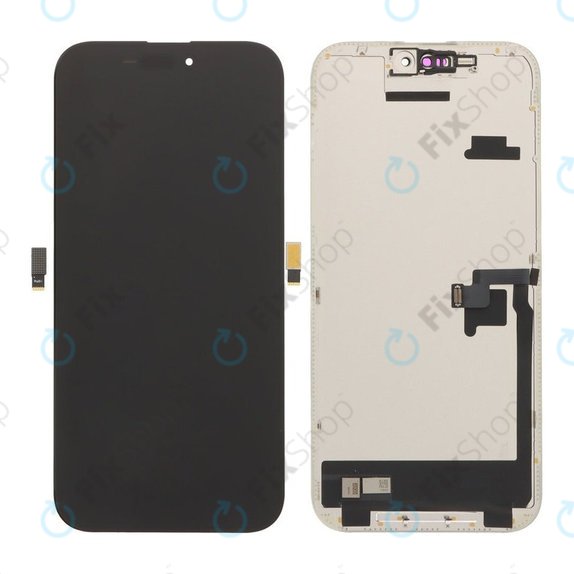

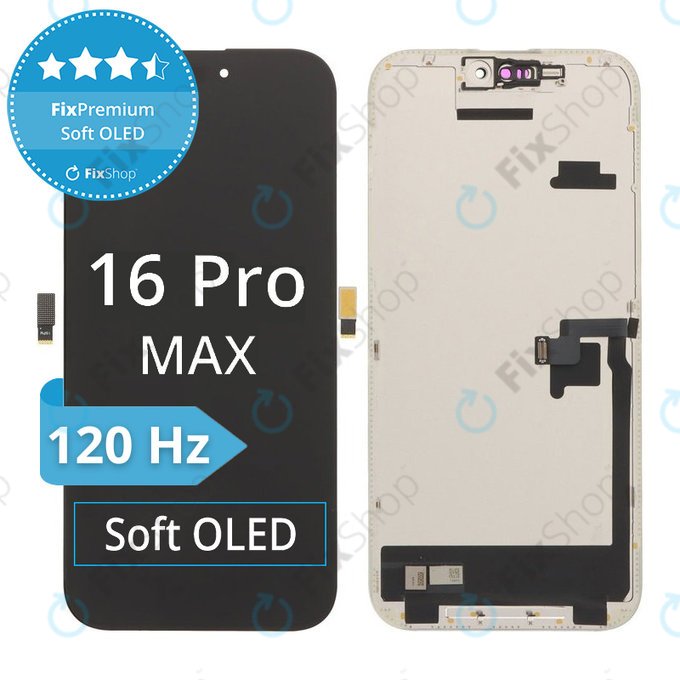

Display Soft OLED for iPhone 16 Pro Max, Touch Screen with Frame, DIAGNOSTIC

  • True Tone Supported – True Tone can be preserved by transferring display data using a JCID programmer.
  • Programmable Serial Number – Allows improved system compatibility after screen replacement.
  • Excellent Color and Contrast – Near-original vibrancy and deep blacks with OLED performance.
  • Exact Size and Resolution – Matches the original screen 1:1 in dimensions and clarity.
  • Flexible Soft OLED Panel – More durable against bending and cracking than Hard OLED alternatives.
  • Ideal for Professional Repairs – Designed for use in quality-focused service centers.

Product variants

Our quality rating

Compatibility

Apple iPhone 16 Pro Max

147.54 €
121.93 € without VAT
For orders above 1,000 € you get FREE shipping
Details

JCID Soft OLED 120hz screen for iPhone. Excellent image quality, compatibility with iOS, True Tone support, best value replacement.

Originality

FixPremium Soft

Match code

AI16PM-48

Artikel

1100336022

  • Add to wishlist

Display Soft OLED for iPhone 16 Pro Max, Touch Screen with Frame, DIAGNOSTIC

147.54 €

  • JCID Soft OLED Display with Touch Glass and Frame

    Displays marked as JCID are manufactured by a third party, not directly by the device manufacturer. The main advantage of a JCID display compared to the original display is that after its replacement, no warning about a non-original display will appear. In the phone settings, the display will be recognized as original, but labeled as "Used" (used part). Although it is a new display, the system considers it as used.

    JCID Diagnosable displays are known for their reliable quality, storing display health data and percentage capacity. The pre-installed JCID chip prevents the iOS system warnings that typically appear with other non-original displays.
    To complete the display replacement, a few simple steps must be performed in the Repair Assistant.

    Procedure:

    1. Open the phone's Settings.
    2. Select "About Phone."
    3. Click on "Parts and Service History."
    4. Choose "Display" and perform "Restart and complete the repair."
    5. Click on "Restart and complete the repair" again.
    6. Launch the Repair Assistant and click "Continue."
    7. Connect to Wi-Fi and click "Continue."
    8. Accept the terms.
    9. Go to "Display" and click "Continue."
    10. Restart the phone.

    This process ensures the proper installation of the display before updating to iOS 26.

    The advantages and disadvantages listed below are compared to the original manufacturer's screen.
    Advantages:

    • Screen size: Same as the original
    • Viewing area: Typically the same as the original
    • Brightness and contrast: Excellent
    • Color accuracy: Excellent
    • Durability: Same as the original, higher than Hard OLED
    • JCID programming reduces potential compatibility issues with iOS system warnings.

    Disadvantages:

    • Replacement part: Non-original

    Features:

    • Made with OLED technology
    • Based on Soft AMOLED technology (Soft OLED = Soft AMOLED - the same technology as the original screen)
    • Haptic Touch
    • Oleophobic coating (resists fingerprints, oil, and dirt)
    • Tested replacement part
    • Replaces a damaged/destroyed screen
    • Includes JCID programming for improved iOS compatibility

    Part of the screen assembly

    • Soft OLED screen
    • Touchscreen glass
    • Display frame
    • Display IC (JCID programmed)
    • Flex cable
    • Front camera holder
    • Proximity sensor holder
    • Ear speaker mesh cover

    Not included, needs to be transferred from the original screen

    • Earpiece
    • Fingerprint sensor
    • Connector cover
    • The metal back plate
    • Flex cable with microphone and proximity sensor (to preserve FACE ID functionality, it's necessary to install the original flex cable)

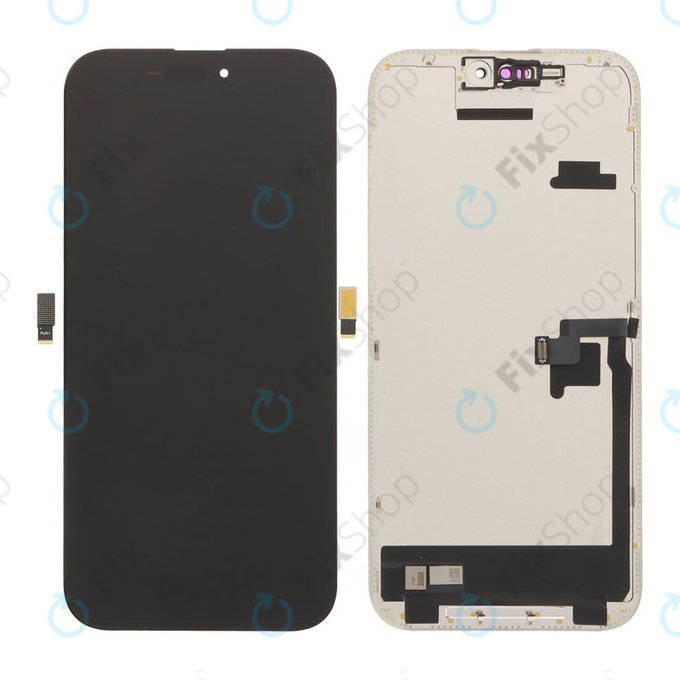

    The screen shown in the image is illustrative and may not include all the parts visible in the picture.

    Preserving functions when replacing the screen
    True Tone function

    • JCID technology preserves True Tone functionality by copying data and serial numbers from the original screen to the new one.
    • Otherwise, True Tone function will remain disabled/non-functional.

    Face ID function

    • Face ID is not included with the screen.
    • After replacing the screen, Face ID functionality is only operational if none of the necessary components on your original device are damaged.
    • *In case of damage, you can contact us to order our Face ID Repair service. A technician will perform diagnostics to determine if Face ID repair is feasible with us, or if the damage is extensive enough that repair is only possible at an authorized Apple service center by exchanging the screen assembly with the Face ID module or the SWAP module.
      *We provide service only in Slovakia.

    Water Resistance

    • When replacing the screen, it's recommended to also apply new adhesive (sealing) to protect the iPhone against moisture and dust.
    • Since this involves intervention in the phone, it's not possible to guarantee that your iPhone will be waterproof again after the replacement.

    Tip: The most common way for dust and moisture to enter a phone is through a damaged or detached screen. To avoid the risk of further damage, such as oxidation or potential short-circuiting, we recommend replacing the damaged screen as soon as possible.

    Tips before replacement:

    • Part replacement should be carried out by a qualified person.
    • Special tools are required for replacement.
    • Test the functionality of the part before replacement.
    • When replacing, pay attention to the fragile parts of the connectors.
    • Try to replace the part in a dry and dust-free environment without direct sunlight.

    We are not responsible for any damage caused during the exchange.
    If you have any questions, please contact us via chat.

    If you are inexperienced in replacing a screen assembly, we recommend that you have your device serviced at a service center.
